Projects and Builds

Projects and Builds help you organize your work and run builds in BuildNinja. Projects group related applications and settings, while Builds define how your code is compiled, tested, and packaged.

Projects

Projects organizes individual projects, each serving as a container for related sub-projects and build configurations. Within Projects, you can:

• View a list of active projects and sub-projects
• Add, copy, and delete projects
• Add and view build configurations
• Pin frequently accessed projects and build configurations
• Manage user access to projects and build configurations
• Define and manage build parameters

Each project serves as a container for its build configurations, execution history, and related records.

Projects Tabs

The following tabs are available to help you manage and configure projects:

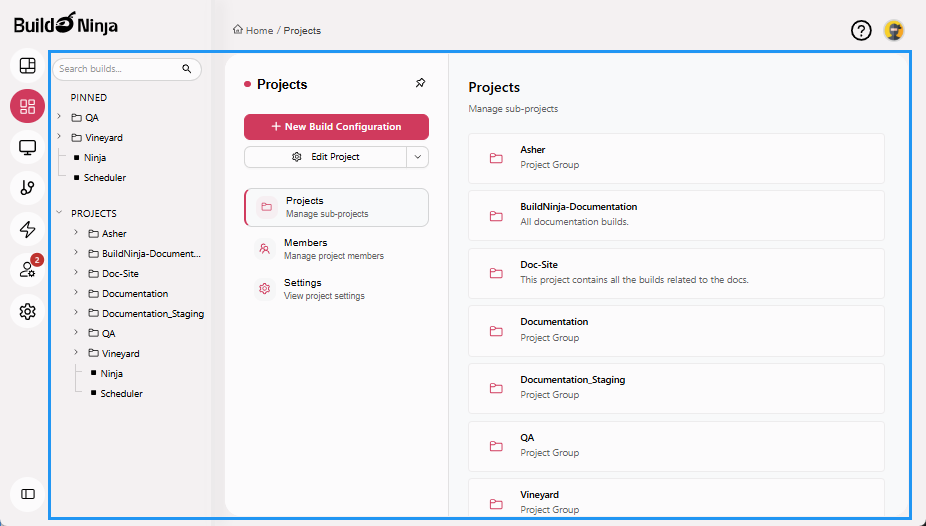

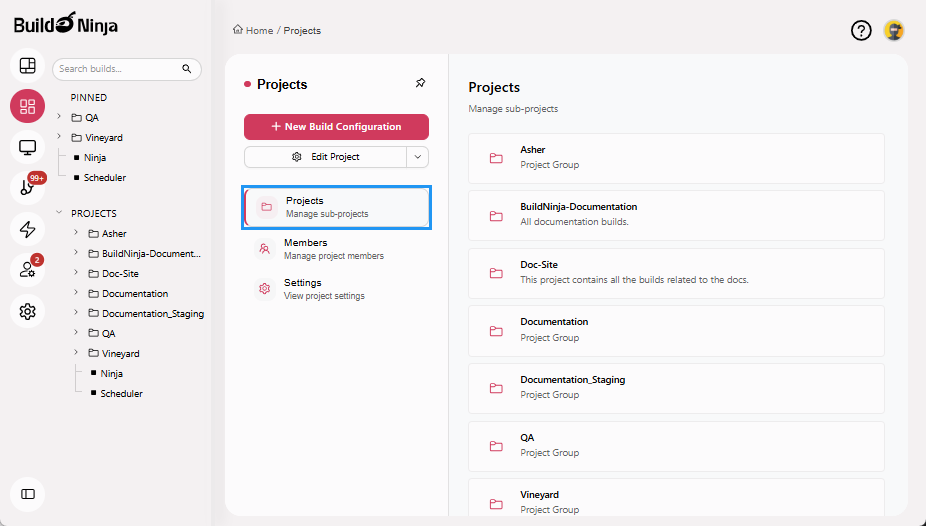

• Projects: Organizes projects, sub-projects, and build configurations in a hierarchical structure. You can create, copy, delete, and pin projects, as well as add and view build configurations.



• Members: Controls user access to projects and build configurations using Role-Based Access Control (RBAC). You can add users, assign roles, and manage permissions at the project level.

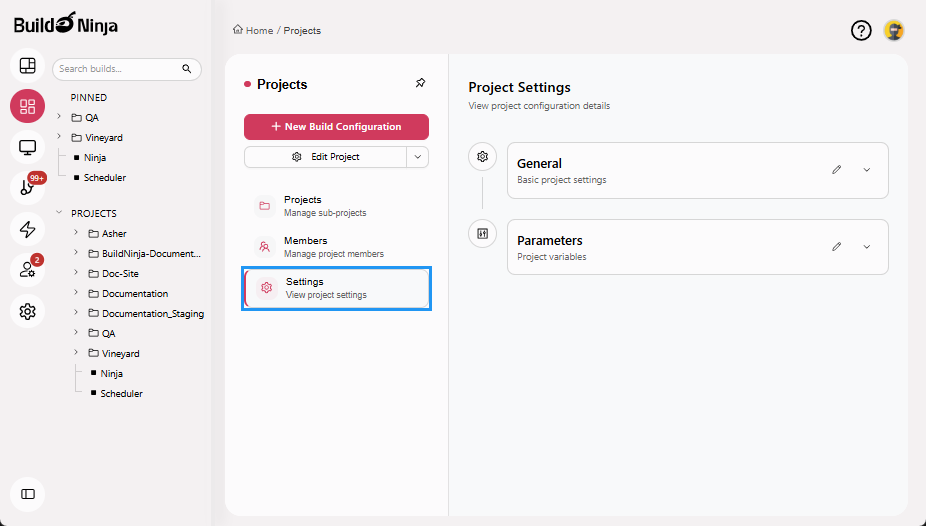

• Settings: Provides access to project-level configuration options.



Projects Settings Tabs

The following tabs are available to help you manage project settings:

• General: Allows you to update the project name and description.

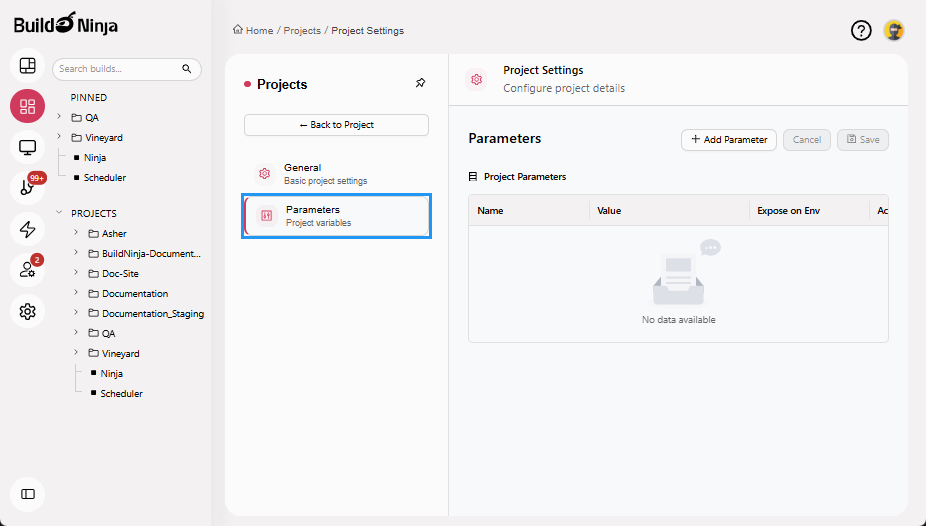

• Parameters: Allows you to define and manage build parameters used by build configurations within the project.



Build

Build provides detailed insight into individual build processes, allowing you to manage, monitor, and troubleshoot builds effectively. It enables you to:

• Browse the history of past builds
• View logs for each step in the build process
• Check and update configuration details
• Define and manage build parameters to customize build behavior
• Identify and troubleshoot build failures
• Download build artifacts
• View compatible agents for the build
• Configure triggers to automate build execution
• Manage user access to the build using RBAC
• Manually run builds when needed

Build Tabs

The following tabs are available to help you interact with and configure builds:

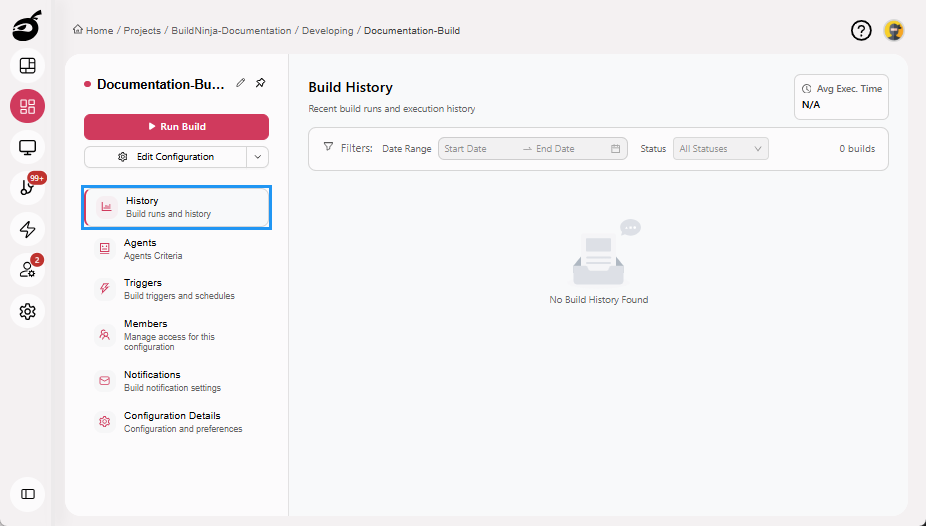

• History: Displays high-level build information, including status, trigger time, and duration.



• Agents: Lists available build agents capable of running the build, based on platform, capacity, and configuration.

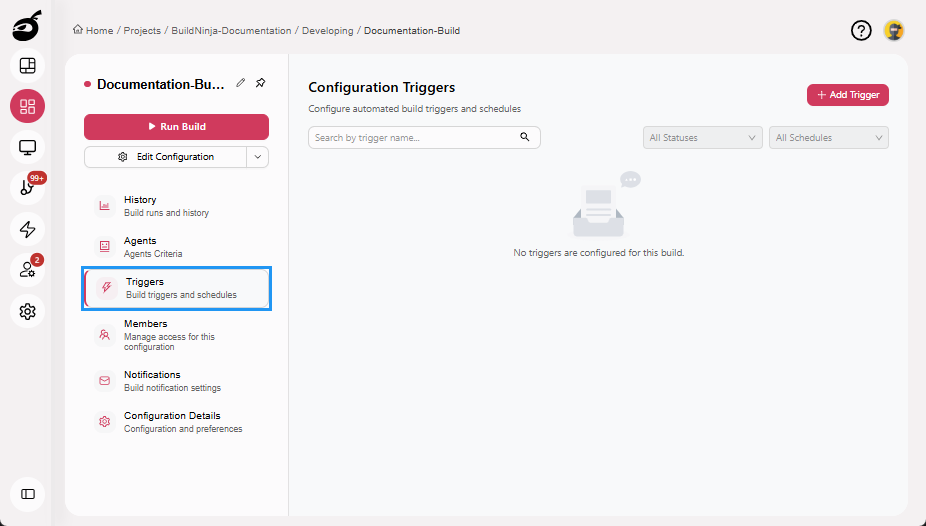

• Triggers: Allows you to define when builds should be triggered.

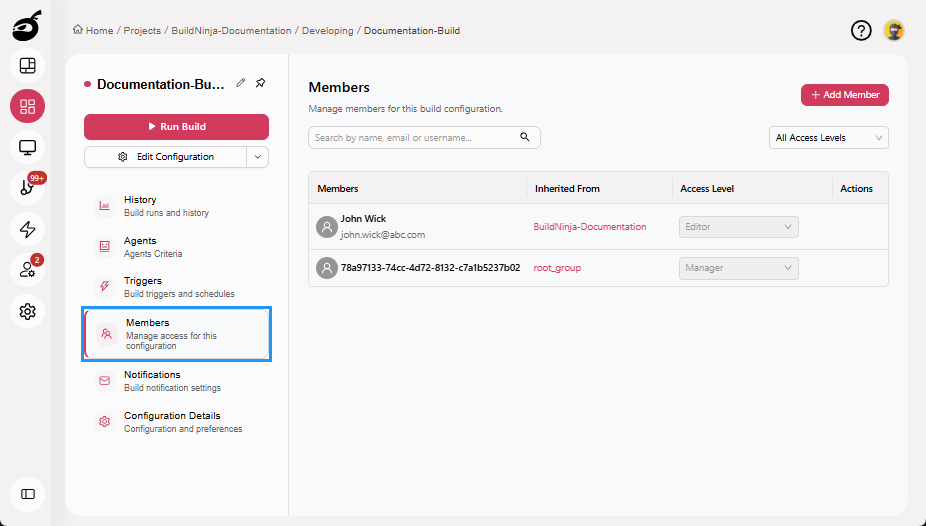

• Members: Controls user access to the build configuration using RBAC. You can add users, assign roles, and manage permissions specific to the build configuration.

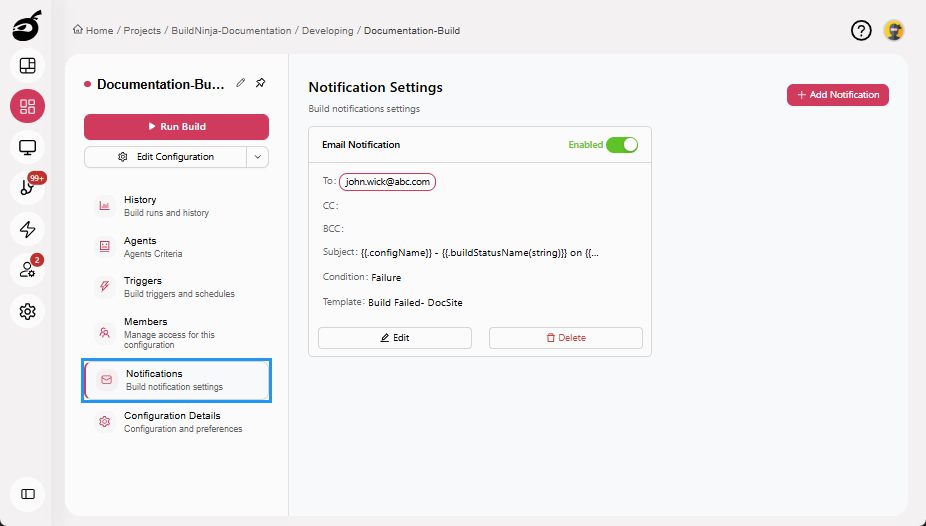

• Notifications: Allows you to define how and when you receive alerts for your builds.

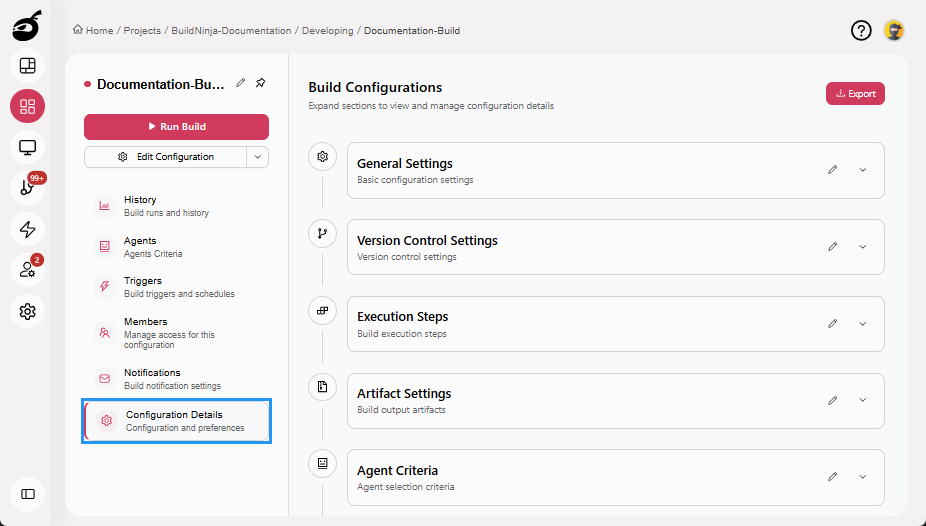

• Configuration Details: Provides access to the build’s configuration options, such as repository settings, execution steps, artifacts settings, and agent criteria.



Build Result Tabs

The following tabs are available to view build results that provide detailed insights into each successful or failed build:

• Overview: Displays key details such as trigger information, build duration, and agent details.

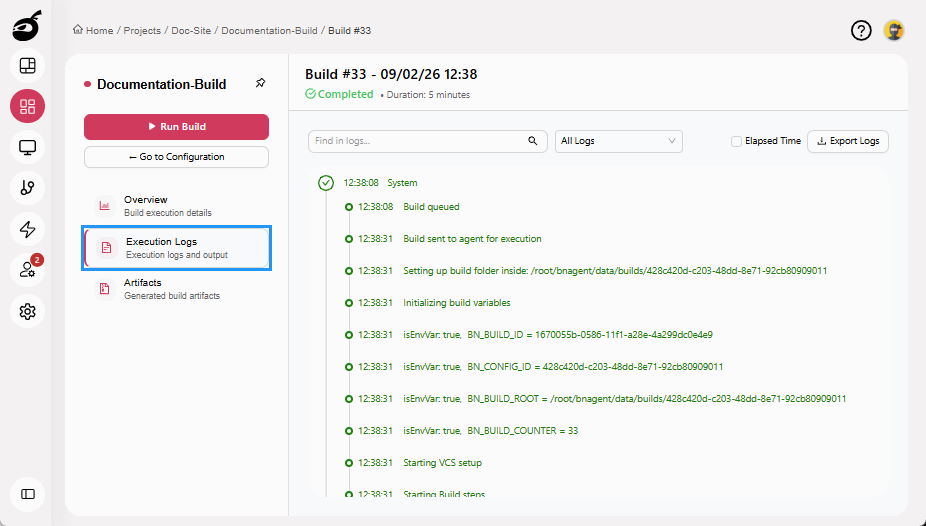

• Execution Logs: Provides a step-by-step record of the build process, useful for reviewing executed actions and diagnosing errors.



• Artifacts: Lists the files generated during the build, if artifact publishing is configured.



Build Configuration Tabs

The following tabs are available to configure and manage your build settings and requirements:

• Basic Information: Manage the build name and description.

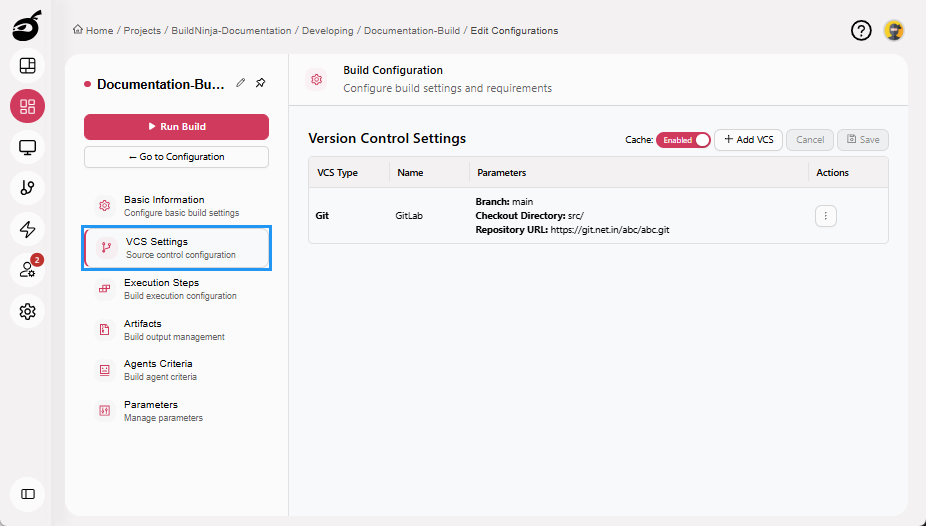

• VCS Settings: Configure version control repositories and caching.

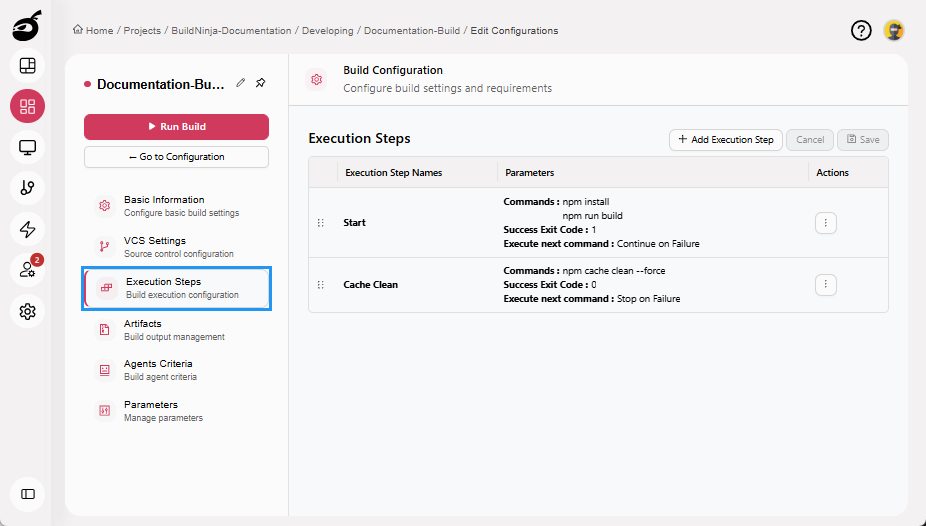

• Execution Steps: Define the sequence of actions for building, testing, and deploying code.

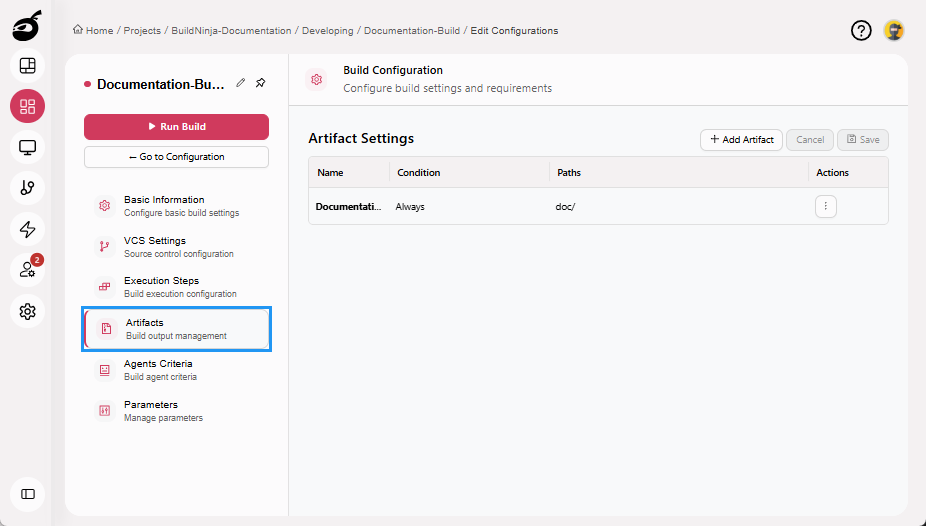

• Artifacts: Specify the directories where build artifacts will be stored after the build process completes.



• Agents Criteria: Set rules to select suitable build agents based on OS, tools, or tags.



• Parameters: Define and manage build parameters that can be used within the build configuration. These parameters allow you to customize build behavior and reuse values across execution steps.



Build Runners

Build RunnersBuild Runners define how a build step is executed inside BuildNinja. Each runner encapsulates a specific execution strategy, such as running shell commands, building . define how your execution steps are executed. BuildNinja supports the following runner types:

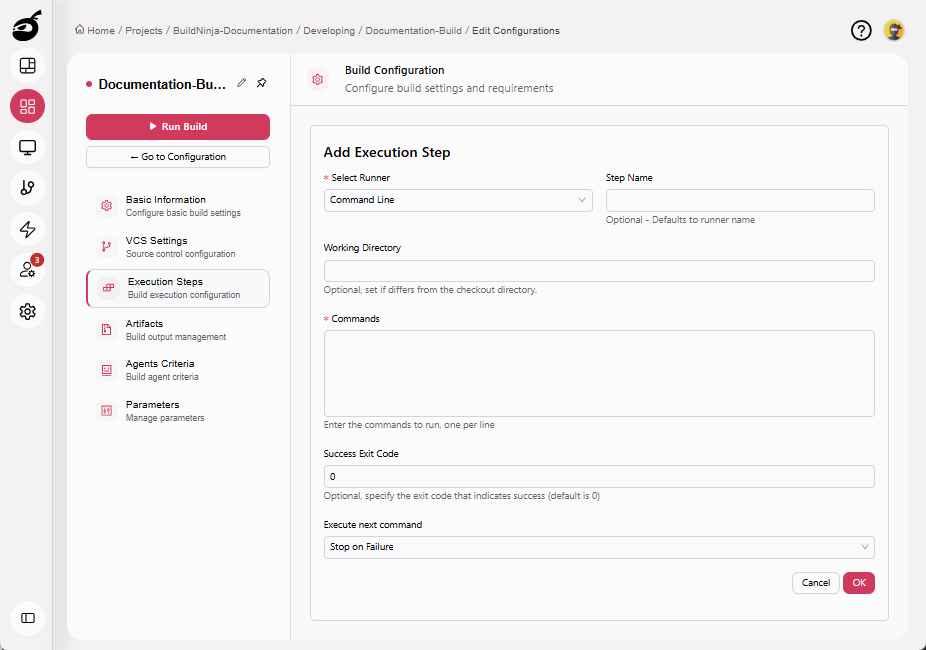

• Command LineThe Command Line Runner executes one or more shell or batch commands directly on the BuildNinja agent machine. It provides a flexible way to run command-line tools, scripts, and system utilities, making it well suited fo…: Executes shell or batch scripts; flexible for a wide range of tasks. Parameters include:

  • Step Name: Optional step name. Defaults to the runner name if not specified.
  • Working Directory: Directory where the commands will be executed. Defaults to the system working directory if left blank.
  • Commands: The shell command(s) to run during the build process.
  • Success Exit Code: Optional. Specifies the exit code that should be treated as a successful execution. The default success exit code is 0.
  • Execute Next Command: Controls whether subsequent steps continue to run if this step fails.

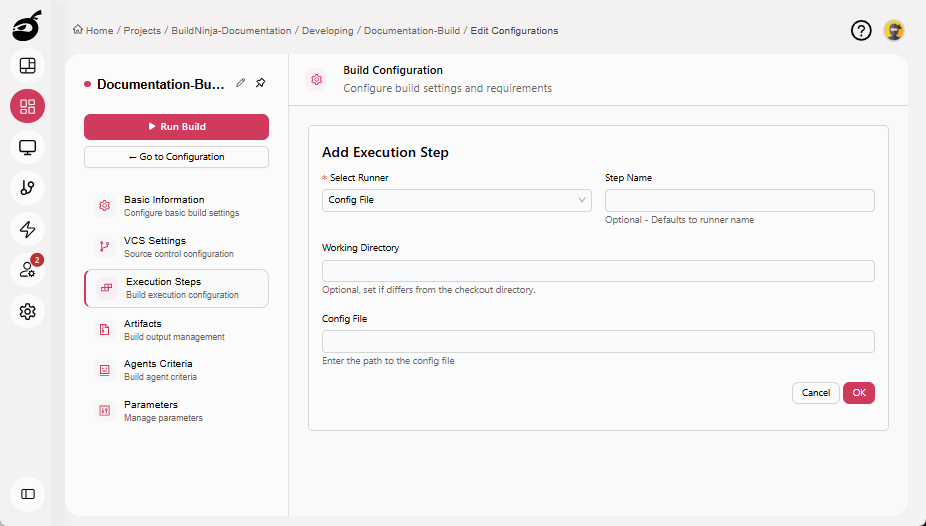

• Config FileThe Config File Runner executes builds using a declarative YAML configuration file. It enables build logic to be version-controlled, reviewed, and reused consistently across projects and environments, promoting reproduci…: Triggers and configures builds using a declarative YAML file. Parameters include:

  • Step Name: Optional step name. Defaults to the runner name if not specified.
  • Working Directory: Directory where the build process runs.
  • Config File: Path to the configuration file.

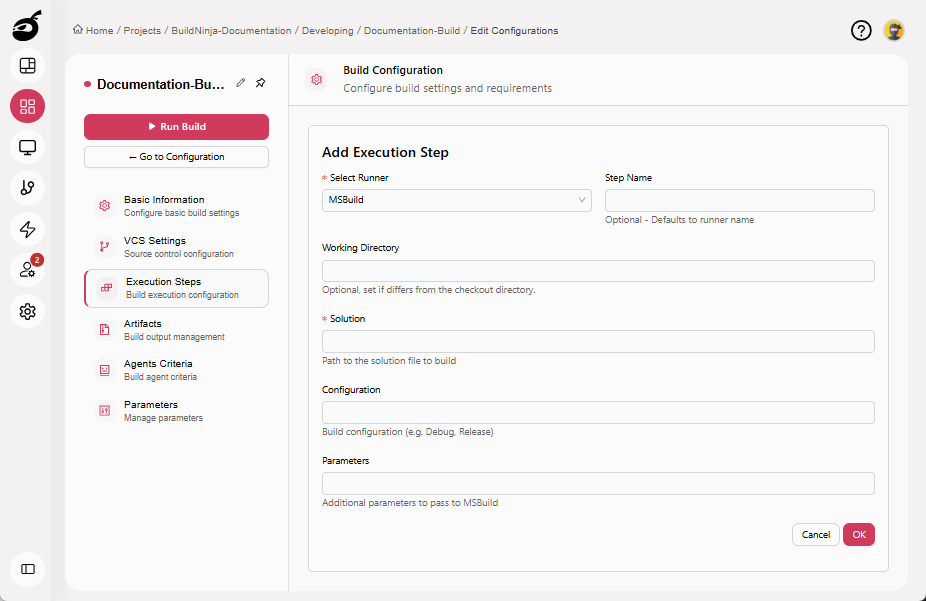

• MSBuildThe MSBuild Runner compiles and builds .NET projects and Visual Studio solution files using Microsoft’s MSBuild engine. It provides fine-grained control over build configurations, supports custom parameters, and integrat…: Builds .NET and Visual Studio projects. Parameters include:

  • Step Name: Optional step name. Defaults to the runner name if not specified.
  • Working Directory: Directory where the build runs.
  • Solution: Path to the solution file to build.
  • Configuration: Build configuration (e.g., Debug or Release).
  • Parameters: Additional parameters to pass to MSBuild.



• VSTestThe VSTest Runner executes automated tests built with Visual Studio test frameworks and generates structured test reports for analysis and quality validation.: Runs automated tests within Visual Studio projects. Parameters include:

  • Step Name: Optional step name. Defaults to the runner name if not specified.
  • Working Directory: Directory where the test process runs.
  • Test Assembly: Path to the test assembly to run.
  • Reports Folder: Folder path where test reports are saved.
  • Report Name: Name of the test report file (without extension).
  • Fail Criterion: Defines failure conditions — test fails if errors exceed a specified percentage or count.
  • Arguments: Additional arguments to pass to VSTest.



• SSHThe SSH Runner executes commands on a remote machine over Secure Shell (SSH). It enables secure remote automation for deployments, infrastructure management, and post-build operations.: Executes commands on a remote machine over SSH, enabling deployments and remote operations. Parameters include:

  • Step Name: Optional step name. Defaults to the runner name if not specified.
  • Working Directory: Directory where the commands will be executed.
  • Host: The SSH host address of the remote machine.
  • Port: The SSH port number. Defaults to 22.
  • User: The SSH user name used to establish the connection.
  • Authentication Type: The method used to authenticate with the remote machine. Supported options include:

    • Password: Authenticates using the SSH user’s password. This option is simple to configure but is generally less secure than key-based authentication. This option includes:

      • Password: The password used for authentication.

    • Default SSH Key: Uses the default SSH private key available on the BuildNinja agent machine (~/.ssh/id_rsa) to authenticate with the remote host. This option includes:

      • Root Password: The password of the remote machine’s root user, used to authorize access if required.
      • Passphrase: The passphrase associated with the default SSH private key, if the key is encrypted.
      note

      The corresponding public key must be added to the remote machine’s ~/.ssh/authorized_keys file.

    • Custom SSH Key: Uses a user-provided SSH private key for authentication. This is useful when a specific key is required for access or when different keys are needed for different environments. This option includes:

      • Root Password: The password of the remote machine’s root user, used when privileged access is required.
      • SSH Key: The custom SSH private key used to authenticate with the remote host.
      • Passphrase: The passphrase associated with the provided SSH private key, if the key is encrypted.
      note

      The corresponding public key must be added to the remote machine’s ~/.ssh/authorized_keys file.

  • Commands: The commands to execute on the remote machine, entered one per line.

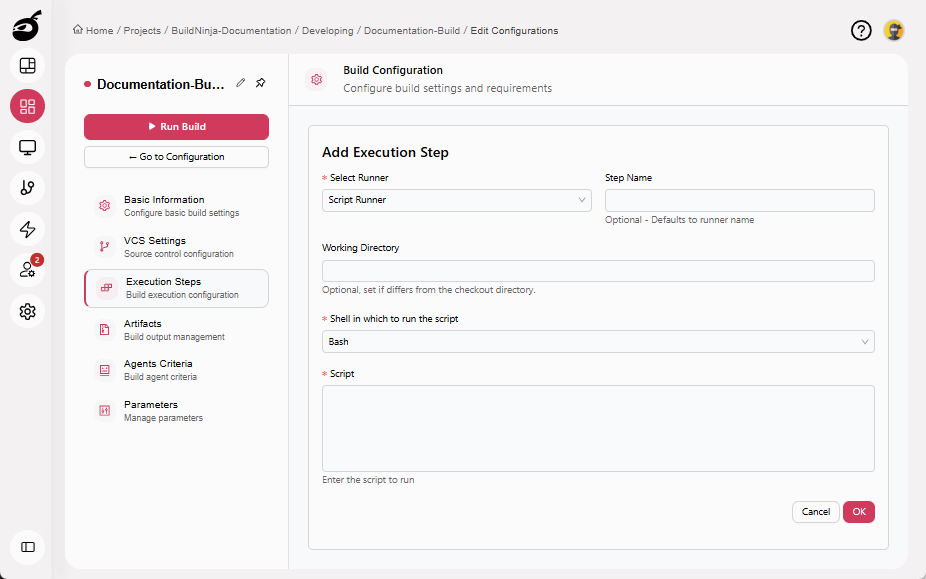

• ScriptThe Script Runner executes multi-line scripts using a selected shell or scripting environment. It supports complex logic, conditional execution, loops, and reusable automation, making it suitable for advanced build steps…: Executes multi-line scripts as part of a build step, enabling complex logic, conditional execution, and reusable automation. Parameters include:

  • Step Name: Optional step name. Defaults to the runner name if not specified.
  • Working Directory: Directory where the script will be executed.
  • Shell in Which to Run the Script: The shell or scripting environment used to execute the script. Supported options include:
    • Bash: Default shell on most Linux systems; supports advanced scripting features.
    • Shell (sh): POSIX-compliant shell with basic scripting support; best for portability.
    • Zsh: Feature-rich shell with enhanced scripting and customization (if installed on the agent).
    • Command Prompt: Windows command-line interpreter for running .cmd or .bat scripts.
    • PowerShell: Cross-platform automation shell for Windows-based and cloud workflows.
    • PowerShell 7: Modern, cross-platform PowerShell with improved performance and compatibility.
  • Script: The script content to execute during the build step. Enter the script directly, using the selected shell syntax.
